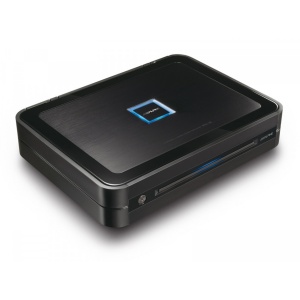

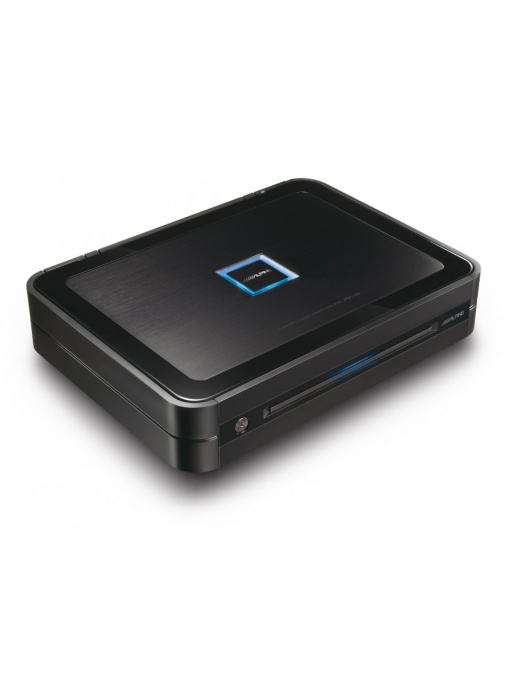

ALPINE PDX-V9 AMPLIFICATOR PE 5 CANALE, 1600W

2.459,57 RON
Cod produs - SKU: PDX-V9
Disponibilitate: Stoc Limitat
TVA inclus; Costurile de livrare nu sunt incluse
Cant:
Vandut de: VagAuto Net
Informatii Produs - 03711041730371104173
Livrare in Ashburn intre 29 sept. - 02 oct.
Cost livrare si procesare 24.99 RON
Retur simplu in 14 zile
Garantie producator
Plata in rate fara dobanda

AMPLIFICATOR AUTO DIGITAL, 4 CANALE + 1 MONO, 1600W



  • Seria PDX este complet reproiectata pentru a imbunatati performantele, calitatea sunetului si fiabilitatea. Seria PDX este pentru adevaratii audiofili, toate acestea intr-o dimensiune compacta.
  • Putere maxima totala: 1600 W
  • Pe canal in 4 Ohmi: 100W RMS x 4 + 500W RMS x 1
  • Pe canal in 2 Ohmi: 100W RMS x 4 + 500W RMS x 1



Caracteristici tehnice:

Install

  • Connectors: Quick Connect Terminals for Power Supply and Speaker Output
  • Terminal Layout: One-Sided
  • Mounting Design: Easy Stacking and Smart Installation

General

  • Amplifier Type: Class-D (Digital)
  • Channel Design: 4-channel + 1-channel (Mono)
  • Thermal Protection
  • Low-battery Protection
  • Power Supply: DC-DC PWM Power Supply
  • Board Circuitry: S.T.A.R. Circuit
  • Current Protection: Auto Over Current Protection
  • Power Indicator: Top Mounted LED Power/Status Indicator
  • Crossover: Variable High Pass, Low Pass and Band Pass Filter
  • Input Channel Mode Setting (CH1/2 & CH3/4):
  • Input Channel Mode Setting (Subwoofer)
  • Subsonic Filter: Variable Subsonic Filter
  • Pre-Amp Stage: Discrete
  • Final Outputs: MOSFET
  • Board Design: 6-Layer Glass Epoxy PC Board
  • Bass Control: Remote Bass Control (RUX-KNOB) Ready

Max Power Output Ratings

  • Total Max Power: 1600W

RMS Power Ratings

  • Per Channel into 4ohms, 14.4V (≤1%THD+N): 100W RMS x 4 + 500W RMS x 1
  • Per Channel into 2ohms, 14.4V (≤1%THD+N): 100W RMS x 4 + 500W RMS x 1
  • Bridged into 4ohms, 14.4V (≤1%THD+N): 200W RMS x 2

Sound Tuning

  • Crossover (CH1/2, HPF): 30 – 600 Hz (x1), 300 – 6kHz (x10), -12 dB/oct.
  • Crossover (CH3/4, HPF): 30 – 600 Hz, -12 dB/oct.
  • Crossover (CH3/4, BPF): 30 – 600 Hz (HPF), 300 – 6kHz (LPF, x10), -12 dB/oct.
  • Crossover (Subwoofer): 50 – 600 Hz, -24 dB/oct.
  • Subsonic Filter: 3 – 30 Hz, -24 dB/oct.

General

  • Power Requirements: 14.4 V.DC (11-16 V allowable)
  • Input Sensitivity (RCA Input): 0.2 – 4V (CH1/2, CH3/4), 0.1 – 4V (Subwoofer)
  • Input Impedance: >10k ohms
  • Frequency Response (+0, -3dB: 1W into 4 ohms) for CH-1/2/3/4: 3 – 100kHz
  • Frequency Response (+0, -3dB: 1W into 4 ohms) for Subwoofer: 3 – 600 Hz
  • THD+N (10W into 4 ohms) for CH-1/2/3/4: ≤0.005%
  • THD+N (10W into 4 ohms) for Subwoofer: ≤0.006%
  • THD+N (Rated Power into 4 ohms) for CH-1/2/3/4: ≤0.03%
  • THD+N (Rated Power into 4 ohms) for Subwoofer: ≤0.05%
  • Damping Factor for CH-1/2/3/4: >500 into 4ohms at 100Hz
  • Damping Factor for Subwoofer: >1000 into 4ohms at 100Hz
  • Signal to Noise (Rated Power into 4 ohms) for CH-1/2/3/4: 112 dB
  • Signal to Noise (Rated Power into 4 ohms) for Subwoofer: 119 dB
  • Weight: 2.7 kg

Dimensions

  • Footprint: 257 x 50.8 x 192 mm
