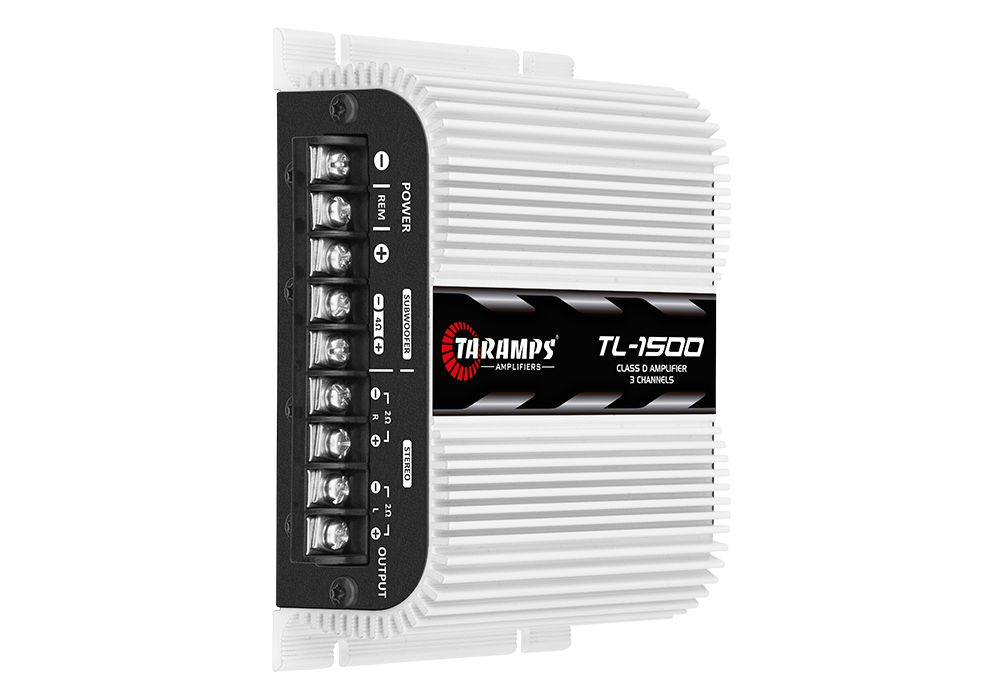

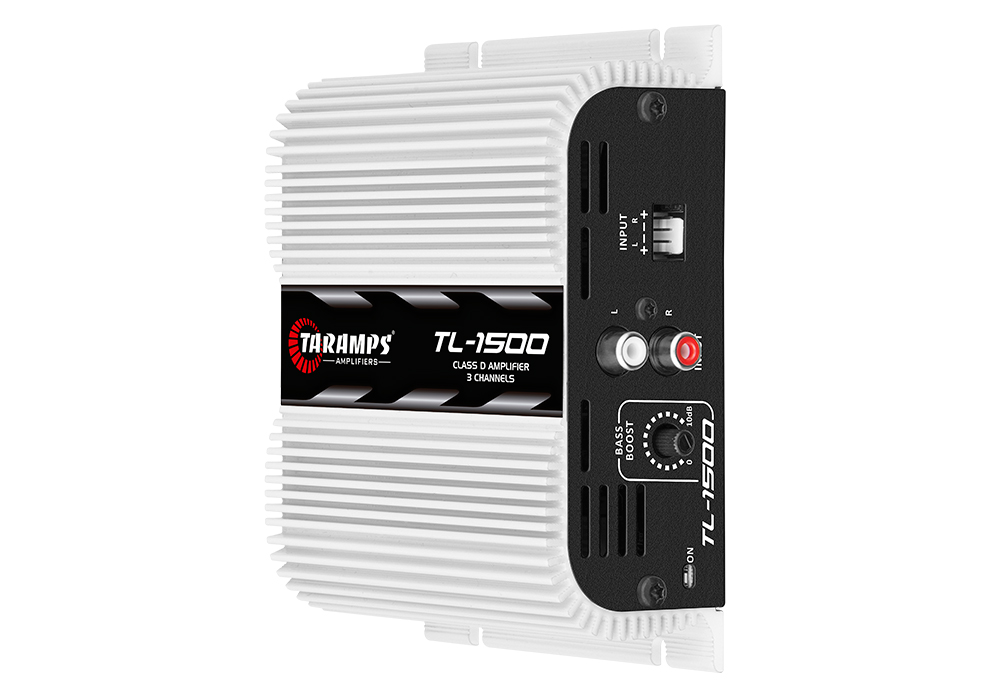

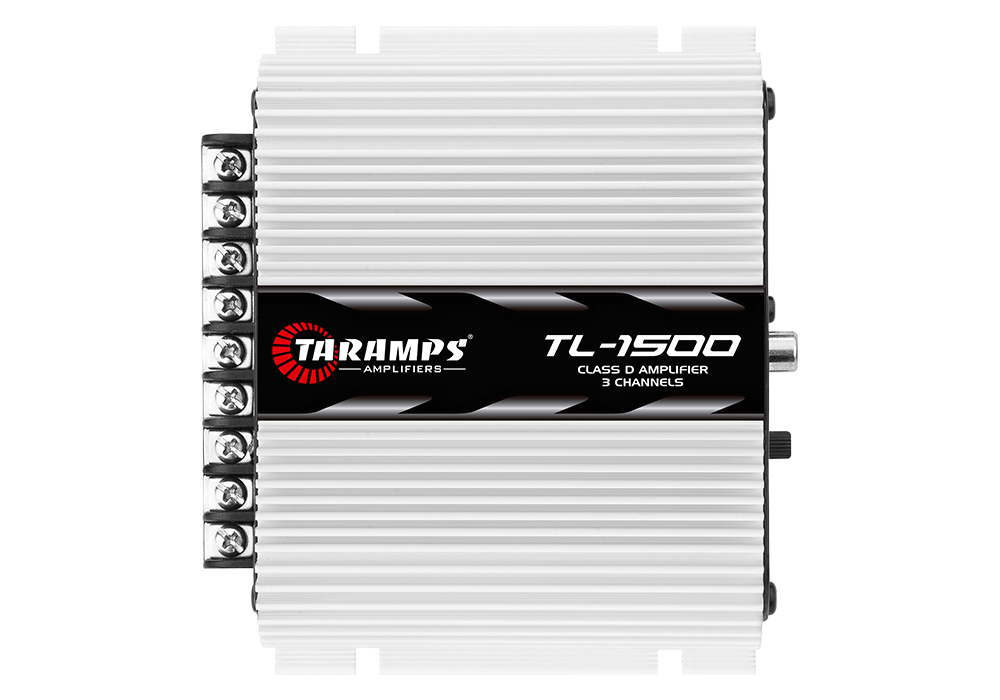

AMPLIFIER TL 1500 / amplificator auto 3 canale 95Wx2 2OHM; 200Wx1 4OHM
Amplificatorul TL 1500 de la Taramps este destinat sistemelor audio auto cu 3 canale, avand urmatoarele caracteristici:
- 2 canale stereo (L/R) la 95 W RMS, la 2 ohmi fiecare, cu un filtru de tăiere activ (HPF) la 90 Hz pentru a conecta difuzoarele ușii și portbagajului.
- 1 canal SUB cu 200 W RMS la 4 ohmi, pentru difuzoare subwoofer. Acest canal este rezultatul sumei canalelor (L/R) cu filtru de tăiere activ (LPF) la 90Hz.
Detalii Tehnice
| Operation class | Class D |
|---|---|
| Number of Channels | 03 |
| Maximum power | @ 13.8 VDC - 2 OHMS 2 x 95W RMS (STEREO) @ 13.8 VDC - 4 OHMS 1 x 200W RMS (SUB) |
| Input Sensitivity | Input RCA = 320mV Wire Input = 6V |
| Signal to Noise Ratio | >90dB |
| Frequency Response | Sub Output: 15Hz to 90Hz and its active frequency cut (12dB/8ª) Stereo Output L/R: 90Hz to 30kHz and its active frequency cut (12dB/8ª) |
| bass boost | 0 to 10dB @ 50Hz - Adjustable |
| Efficiency | 90% |
| Input Impedance | 10K OHMS (RCA) 1K OHMS (WIRE) |
| protection system | Thermal and Output Short |
| Min. Supply Voltage | 9VDC |
| Maximum Power Supply Voltage | 16VDC |
| Consumption at rest | 0.75A |
| Maximum music consumption | 17.5A |
| Maximum consumption in sinusoidal signal | 35A |
| Dimensions (WxHxD) | 5.43" x 1.93" x 4.76" (138 x 49 x 121mm) |
| Weight | 1.32lb (0,60kg) |
| EAN | 7898556844772 |
